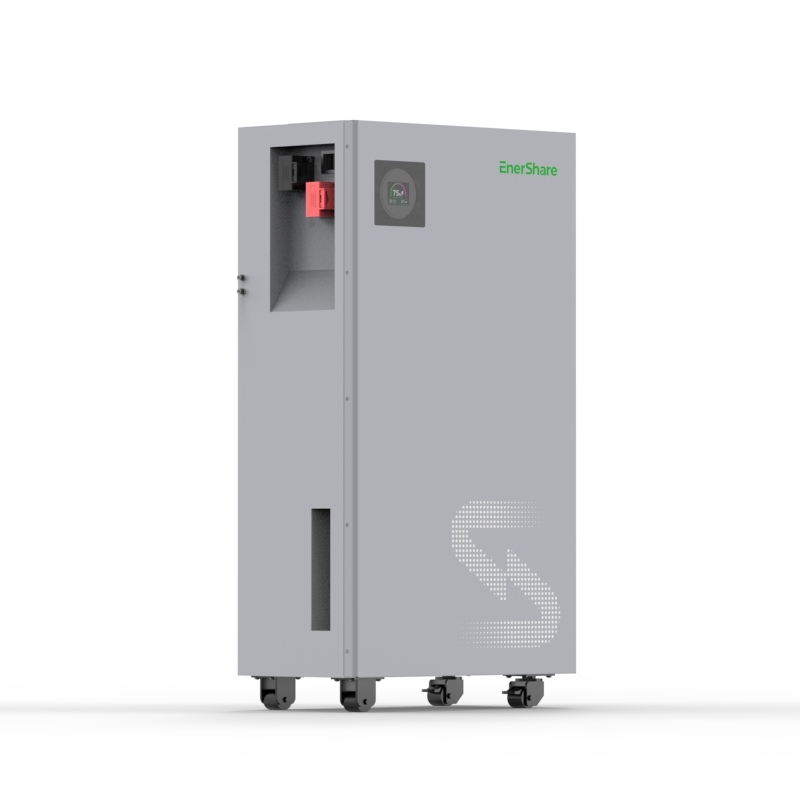

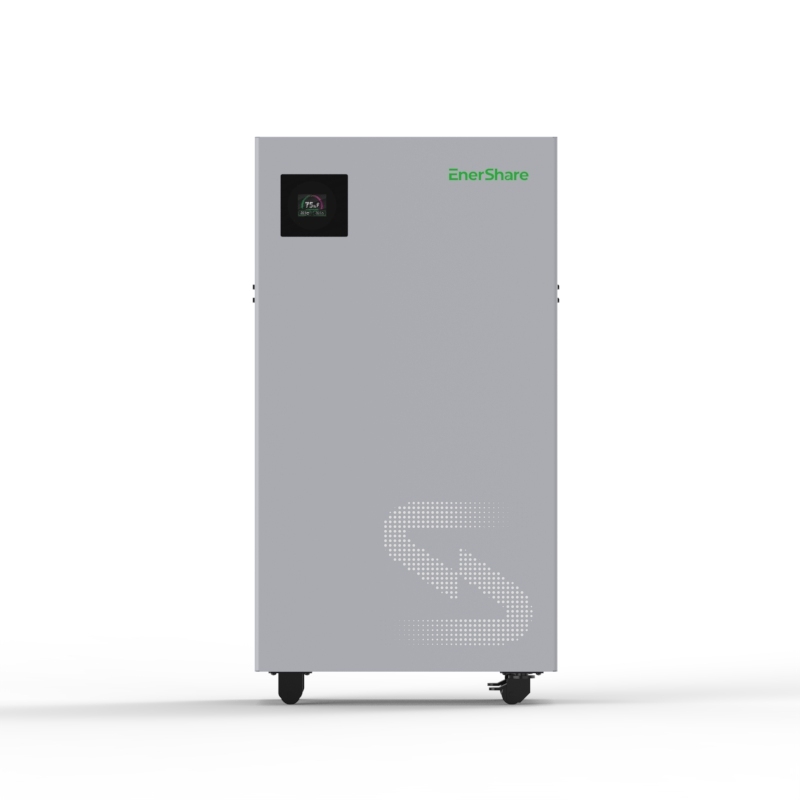

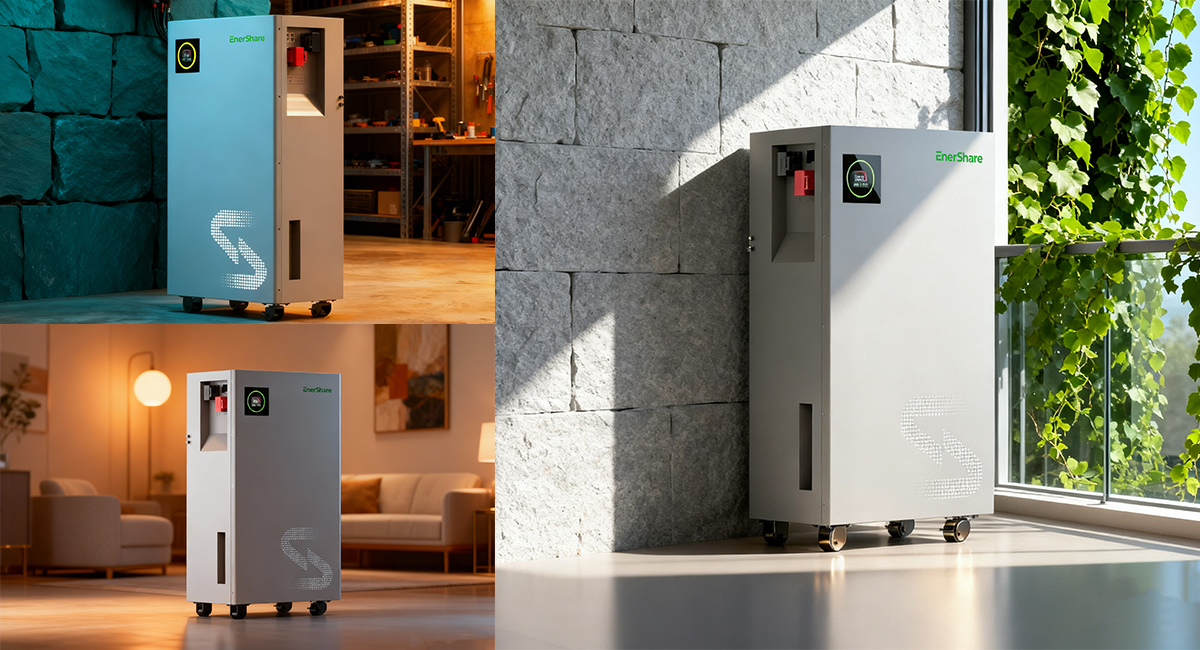

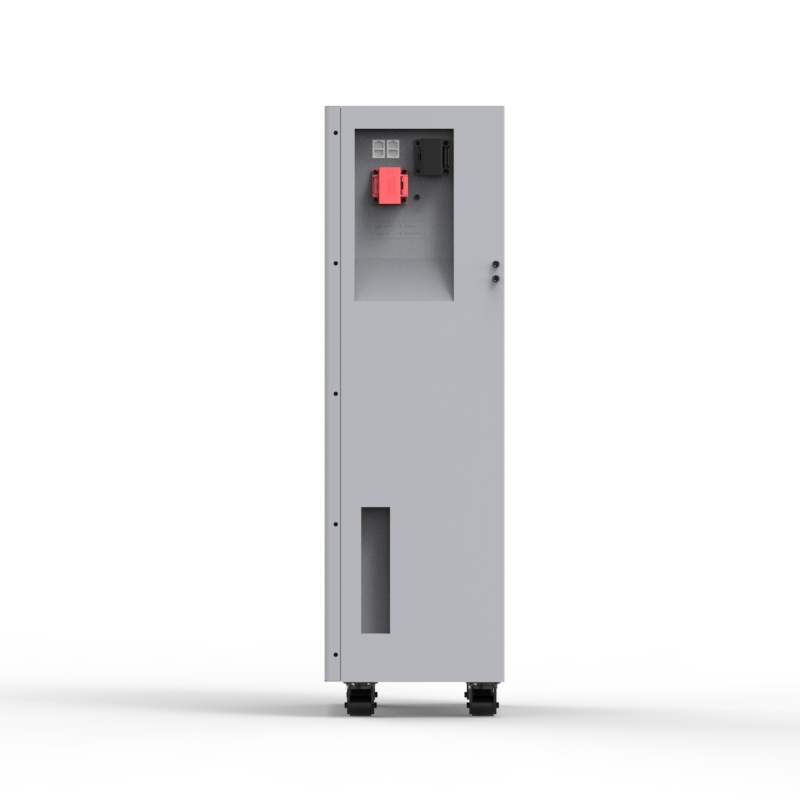

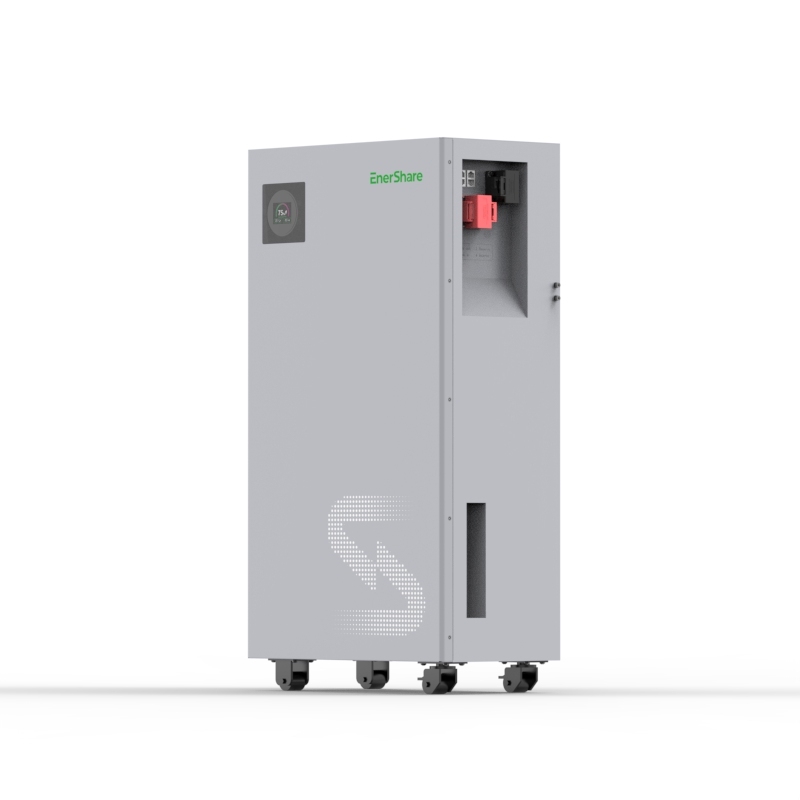

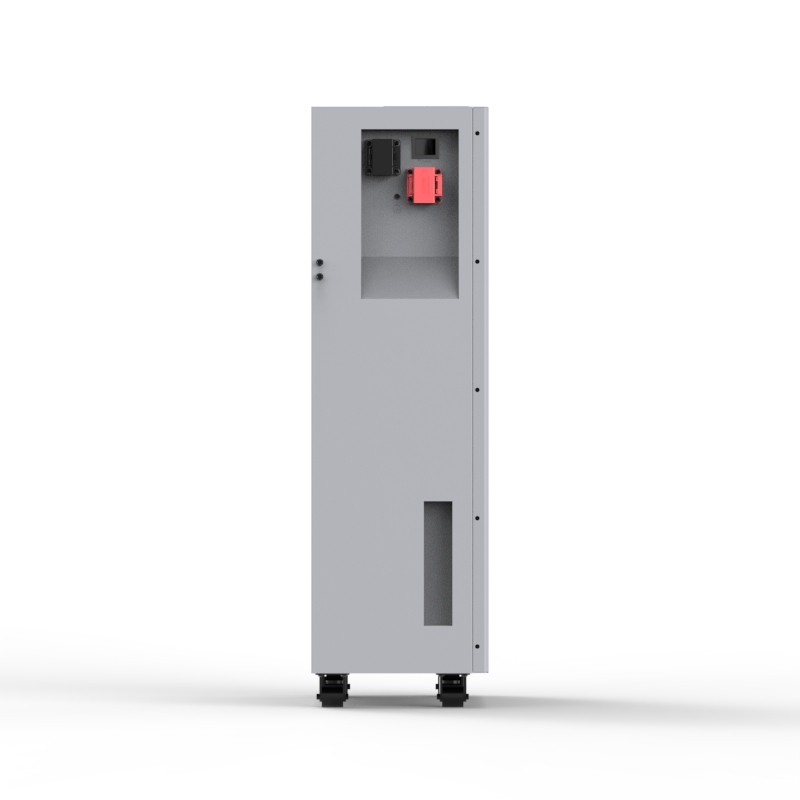

The Active16 48V Solar Battery Pack 15kWh is a next-generation home energy storage solution designed for households seeking reliable, safe, and efficient power backup. Built with LiFePO4 lithium battery technology, it ensures long cycle life, high performance, and maximum safety.
Equipped with a heating function, the Active16 battery maintains stable performance in colder environments, making it ideal not only for households but also for regions with temperature fluctuations. The fire safety protection system guarantees peace of mind with multi-layered thermal management and fire-resistant design.

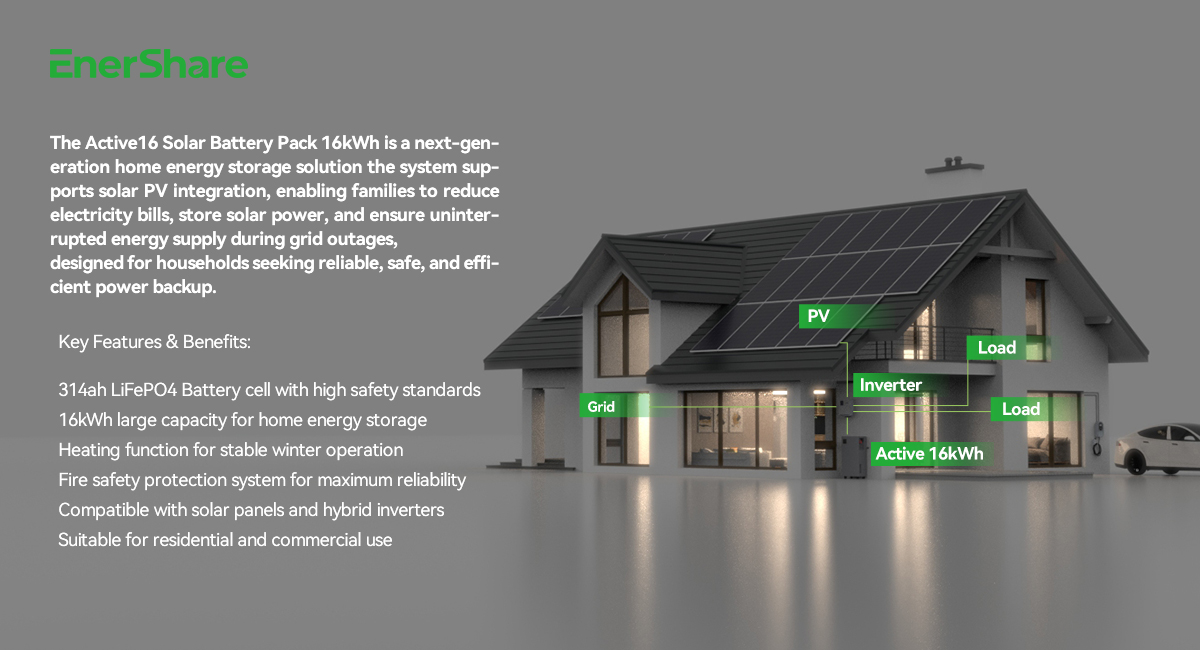

With a 15kWh large capacity and 48V high-efficiency output, the system supports solar PV integration, enabling families to reduce electricity bills, store solar power, and ensure uninterrupted energy supply during grid outages.
Key Features & Benefits:
15kWh large capacity for home energy storage
48V LiFePO4 battery with high safety standards
Heating function for stable winter operation
Fire safety protection system for maximum reliability
Compatible with solar panels and hybrid inverters
Suitable for residential and commercial use
| Model NO | Active14 | Active16 |
| Electrical Parameter | ||
| Battery Type | LiFePO4 | |
| Battery Capacity per Kit [Wh] | 14.34kWh | 16.08kWh |
| Usable Energy [Wh] | 12.9kWh | 14.5kWh |
| Rated Voltage [V] | 51.2V | |
| Voltage range [V] | 44.8V-57.6V | |
| Max. Charging and Discharging Rate | 200A | |
| Depth Of Discharge [DOD] | ≤90% | |
| Cycle Life(25℃ ,0.5C) | ≥8000 times,70% Capacity retention | |

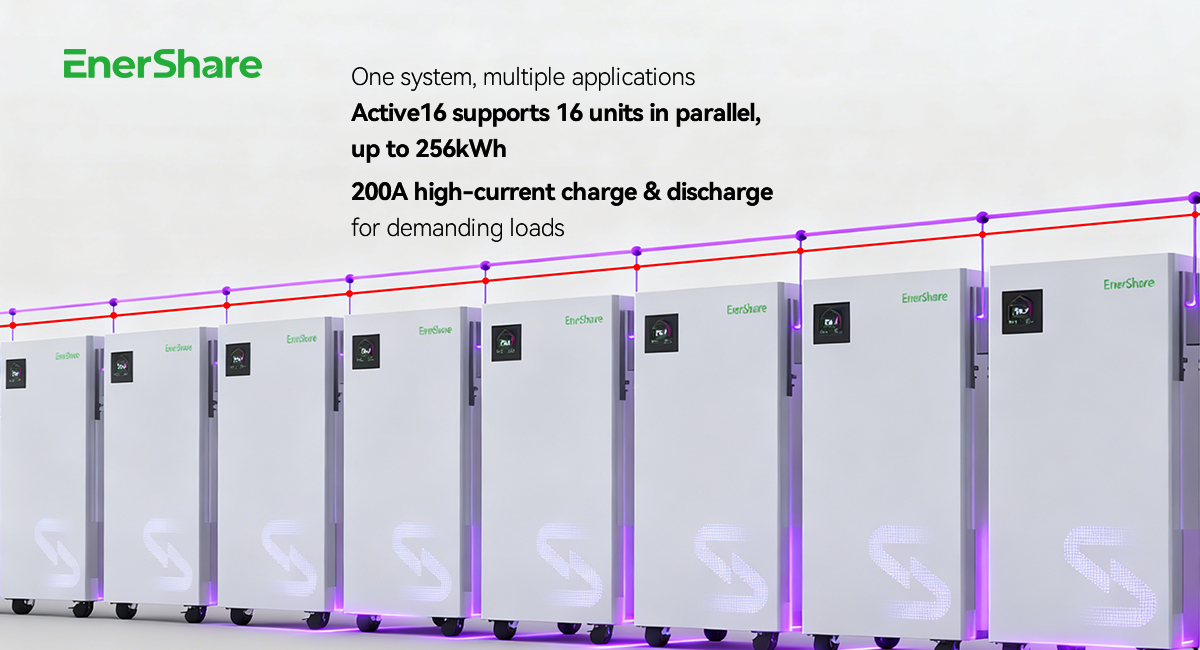

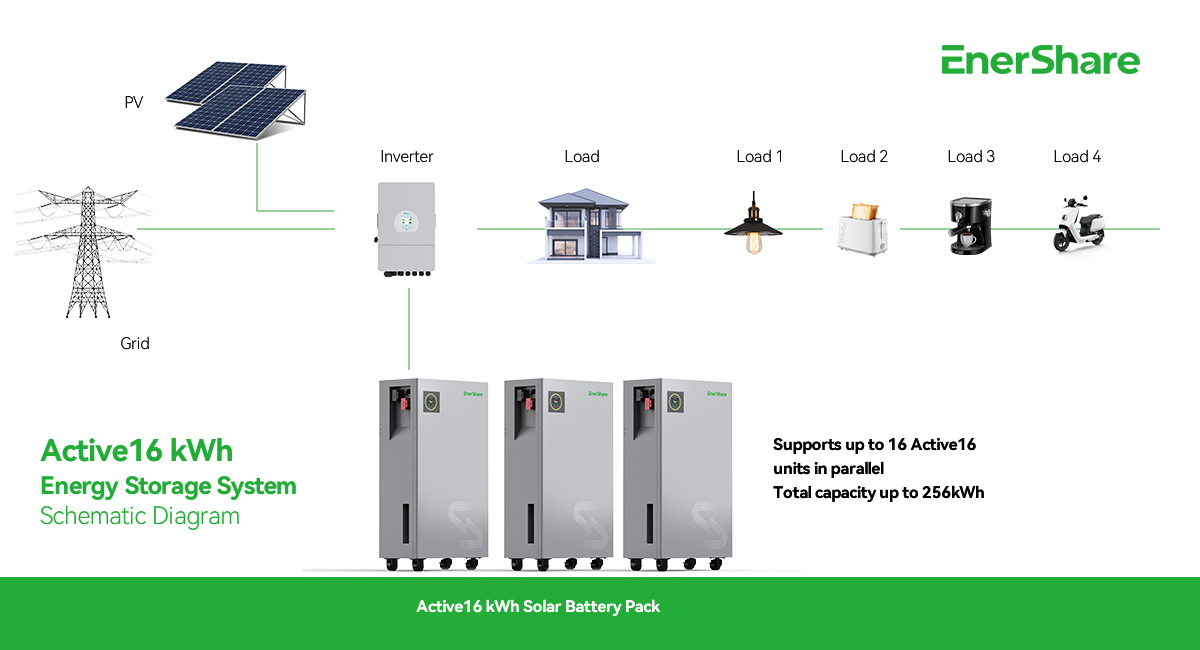

| Scalability | Max.16 Parallel | |
| Heating Function | Yes | |
| Fire Extinguisher Type | Aerosol Fire Extinguisher | |

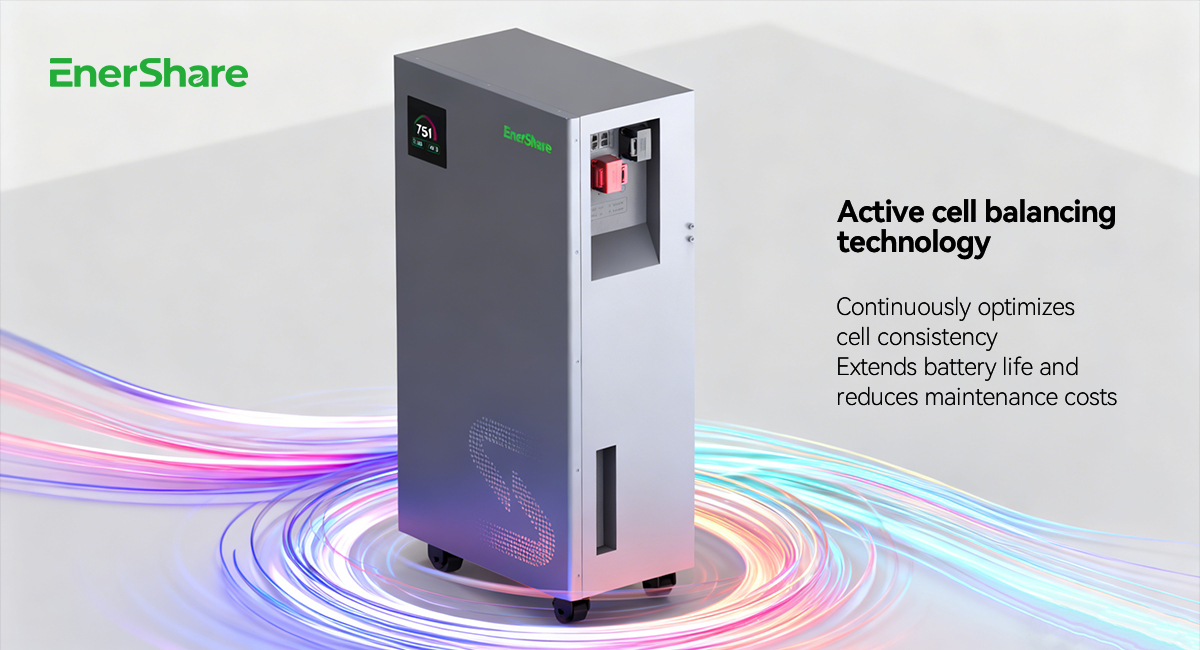

| Active Equalization | Cell-level Active Equalization | |
| Remote Monitoring | Yes (WiFi) | |
| General Data | ||
| Communication Mode | RS485/CAN2.0 | |
| Operating Temperature Range | -20~50ºC(Charge)/-20~50ºC(Discharge) | |
| Storage Temperature Range | -20~60°C | |
| Cooling Method | Natural Convection | |
| Altitude | ≤3000 m | |
| Ambient Humidity | 20-95% non-condensing | |
| Noise[dBA] | <25 | |
| Ingress Protection | IP54 | |

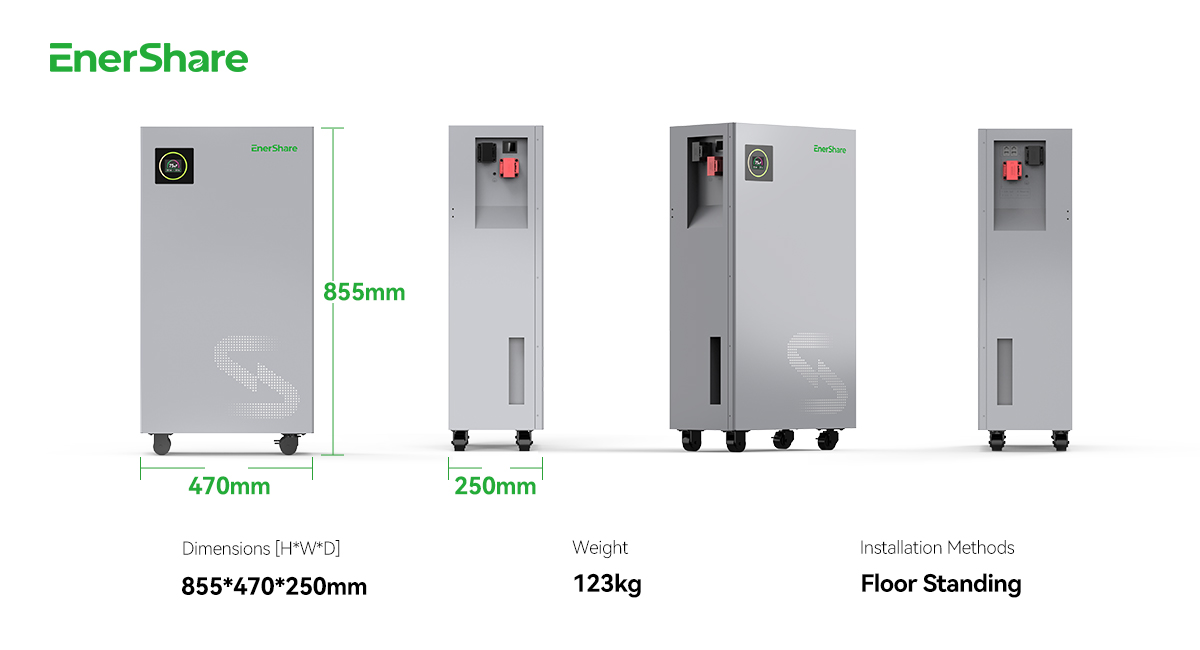

| Dimensions [H*W*D] | 855*470*250mm | |
| Weight | 120kg | 123kg |

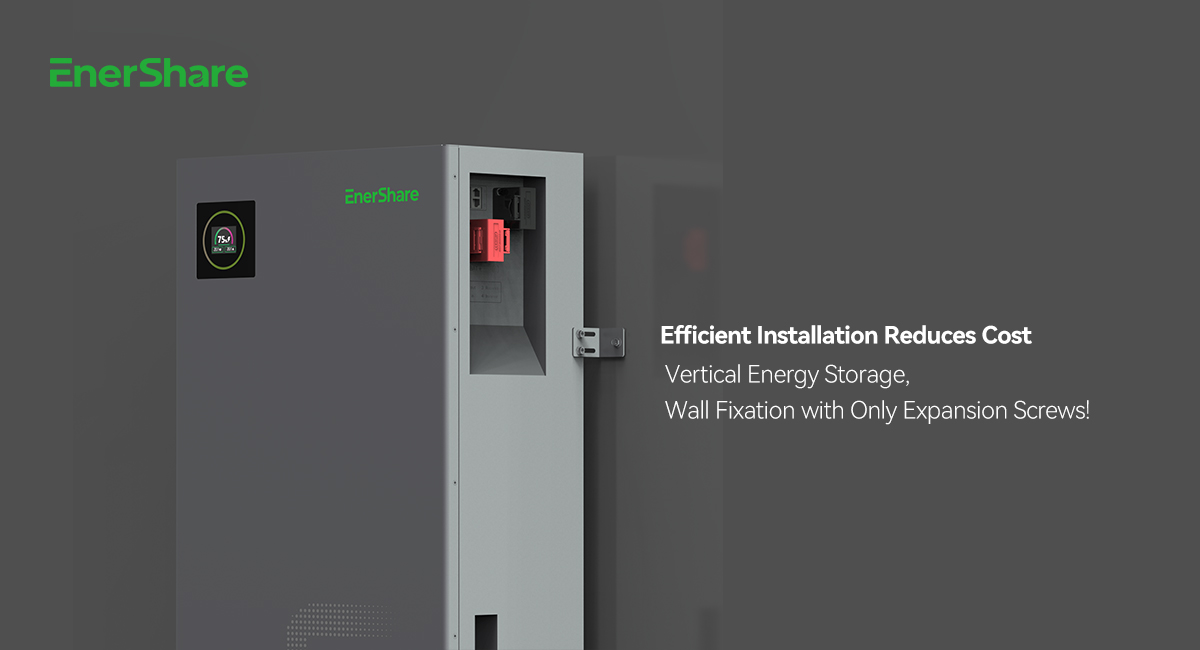

| Installation Methods | Floor Standing | |
