Heating Function for Winter
Built-in heating keeps the battery stable in cold climates — charge and discharge from −20 °C to 50 °C.
Enershare Power-CORE 1.0 / Enershare Energy-CORE 1.0
The Active16 Pro is a 16.08 kWh LiFePO4 solar battery (51.2 V, 48 V class) for home energy storage — with a built-in heating function for stable winter operation, an aerosol fire extinguisher, cell-level active balancing and WiFi remote monitoring.
Built-in heating keeps the battery stable in cold climates — charge and discharge from −20 °C to 50 °C.
Aerosol fire extinguisher plus multi-layered thermal management and fire-resistant design for maximum reliability.

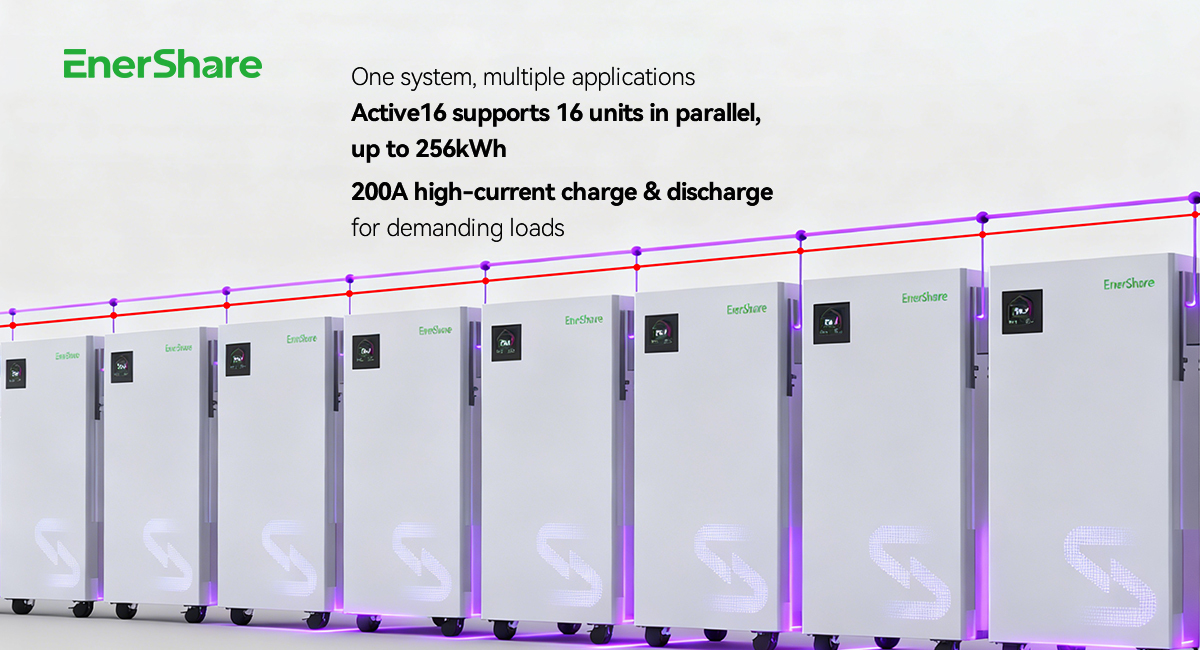

Up to 16 units in parallel and 200 A max charge/discharge for demanding household loads.
One floor-standing vertical unit, one complete data sheet — every value below is from the Active16 Pro factory specification and official dimension drawings.
| Model | Active16 Pro |
|---|---|
| Battery Type | LiFePO4 |
| Battery Capacity per Kit | 16.08 kWh (nominal 16 kWh) |
| Rated Voltage | 51.2 V (48 V battery class) |
| Voltage Range | 44.8 – 57.6 V |
| Max. Charging / Discharging Rate | 200 A |
| Depth of Discharge (DOD) | ≤ 90% |
| Cycle Life | 6000 cycles @ 80% SOH / 8000 cycles @ 70% SOH (25 ± 2 °C, 0.5C) |
| Scalability | Max. 16 units in parallel — up to 256 kWh |
| Heating Function | Yes — stable operation in cold climates |
| Fire Extinguisher | Aerosol fire extinguisher |
| Active Equalization | Cell-level active equalization |
| Remote Monitoring | Yes (WiFi); LED screen shows SOC and working status |
| Communication | RS485 / CAN2.0 |
| Operating Temperature | −20 ~ 50 °C (charge) / −20 ~ 50 °C (discharge) |
| Storage Temperature | −20 ~ 60 °C |
| Cooling Method | Natural convection |
| Altitude / Humidity | ≤ 3000 m; 10% – 95% non-condensing |
| Noise | < 25 dBA |
| Ingress Protection | IP54 |
| Dimensions (H × W × D) | 855 × 470 × 250 mm |
| Weight | 123 kg |
| Installation | Floor standing (vertical); wall fixation with expansion screws |
Also available on the same platform: Active10 Pro (10.24 kWh, 51.2 V / 200 Ah). Physical values per the official dimension drawing; contact us for the full dual-model data sheet.
Safe, reliable home energy storage with long cycle life — engineered for cold climates, verified fire safety and effortless monitoring.
Built-in heating maintains stable performance in colder environments and regions with temperature fluctuations.
Aerosol fire extinguisher with multi-layered thermal management and fire-resistant design.
Continuously optimises cell consistency, extends battery life and reduces maintenance costs.
LED screen displays battery SOC and working status; WiFi enables remote monitoring anywhere.
Max. charge/discharge current of 200 A supports demanding household loads.
Floor-standing 855 mm tower — efficient installation with only expansion screws, reducing cost.
Start with a single 16.08 kWh tower and add units as your energy needs grow.

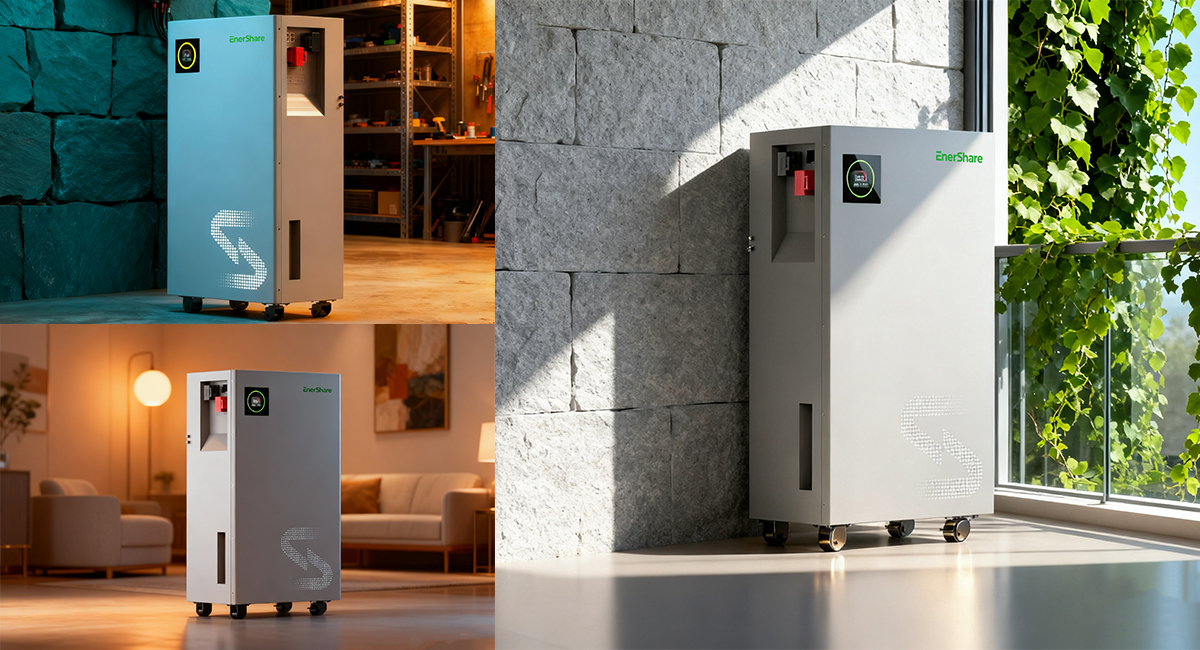

A vertical 48 V-class battery that fits garages, utility rooms, balconies and living spaces alike.

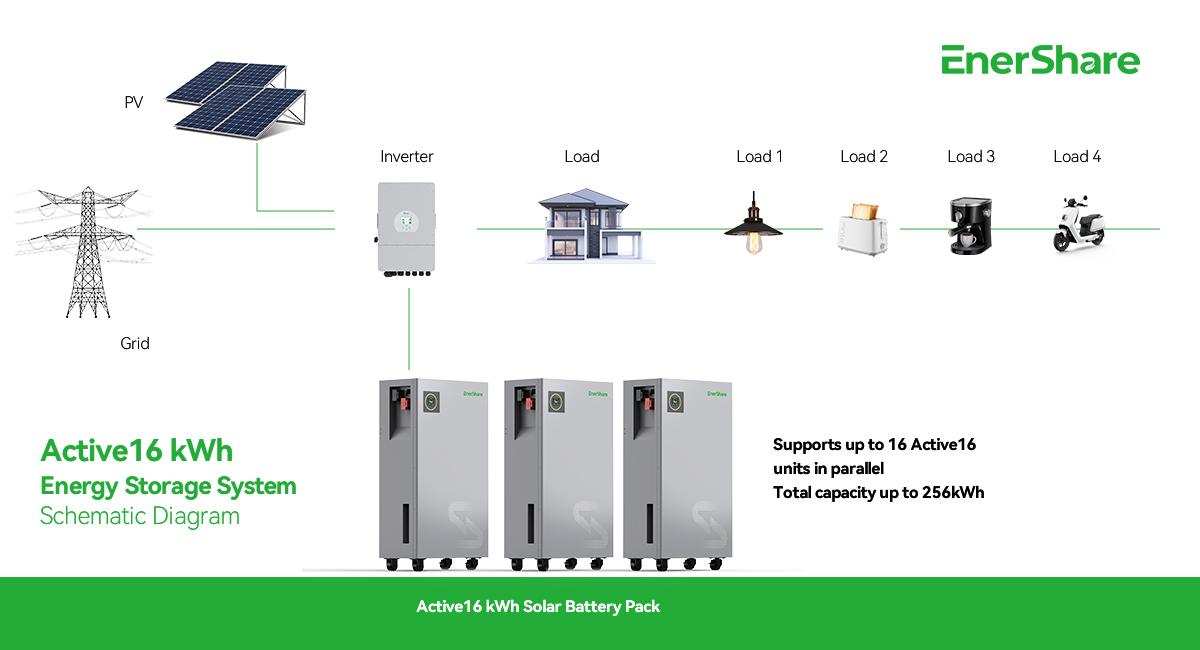

Store solar power by day, use it by night — reduce electricity bills around the clock.
Uninterrupted energy supply for households during grid outages.
Vertical floor-standing footprint fits garages, workshops and plant rooms.
< 25 dBA near-silent operation; IP54 enclosure resists dust and splashing water.
Suitable for small commercial sites needing reliable daily-cycling storage.
Heating function makes it a fit for Alpine, Nordic and Central European winters.
Europe’s winters are exactly what the heating function was designed for: from −20 °C operation to aerosol fire safety and cell-level balancing, the Active16 Pro delivers reliable backup power when the grid and the weather are both at their worst.
Charge and discharge from −20 °C to 50 °C thanks to the built-in heating function.
8000 cycles @ 70% SOH (6000 @ 80% SOH) at 0.5C, 25 ± 2 °C.
Up to 16 Active16 units in parallel, each adding 16.08 kWh.
Get inverter matching guidance, capacity configuration and project recommendations for your European home storage installation.
Answers for installers, EPC teams and distributors working with the Active16 Pro across Europe.
Tell us your capacity target and inverter brand — we will send a matching configuration and quotation.
| Model NO | Active10 Pro | Active16 Pro |
| Electrical Parameter | ||
| Battery Type | LiFePO4 | |
| Battery Capacity per Kit [Wh] | 10.24kWh | 16.08kWh |
| Rated Voltage [V] | 51.2V | |
| Voltage range [V] | 44.8V-57.6V | |
| Max. Charging and Discharging Rate | 200A | |
| Depth Of Discharge [DOD] | ≤90% | |
| Cycle Life(25℃ ,0.5C) | 6000cls@80%SOH /8000cls@70%SOH 25℃±2℃ 0.5P | |
| Scalability | Max.16 Parallel | |
| Heating Function | Yes | |
| Fire Extinguisher Type | Aerosol Fire Extinguisher | |
| Active Equalization | Cell-level Active Equalization | |
| Remote Monitoring | Yes (WiFi) | |
| General Data | ||
| Communication Mode | RS485/CAN2.0 | |
| Operating Temperature Range | -20~50ºC(Charge)/-20~50ºC(Discharge) | |
| Storage Temperature Range | -20~60°C | |
| Cooling Method | Natural Convection | |
| Altitude | 3000 m | |
| Ambient Humidity | 10% ~ 95%, non-condensing | |
| Noise[dBA] | <25 | |
| Ingress Protection | IP54 | |
| Dimensions [H*W*D] | 210*450*35mm (optional) | 210*510*35mm (optional) |
| Weight | 87±1kg | 117±1kg |
| Installation Methods | Floor Standing | |
