One-Person Stack Installation
Each pack is ≤36.5 kg with invisible handles, so one technician can lift, stack and commission a complete tower without a second pair of hands.

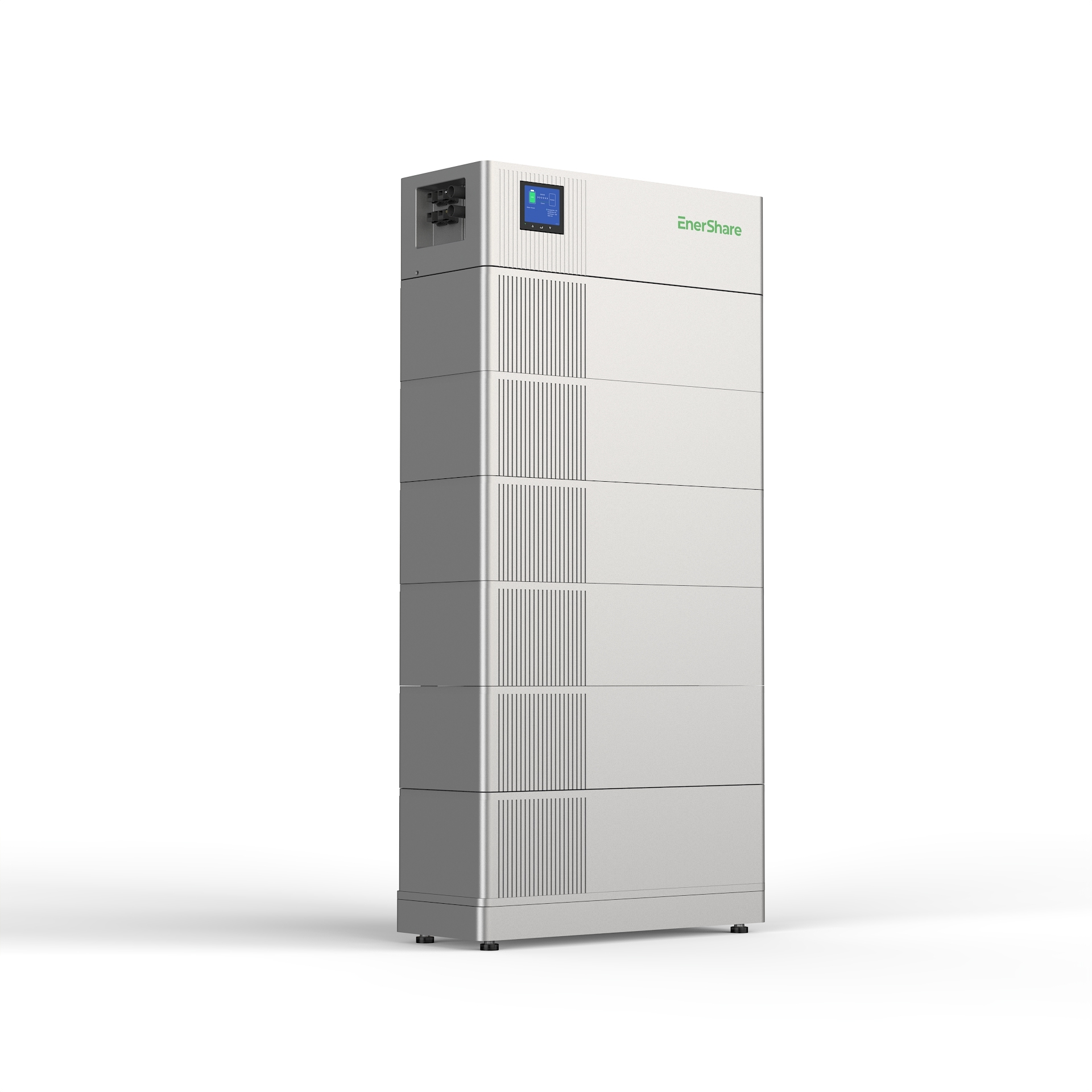

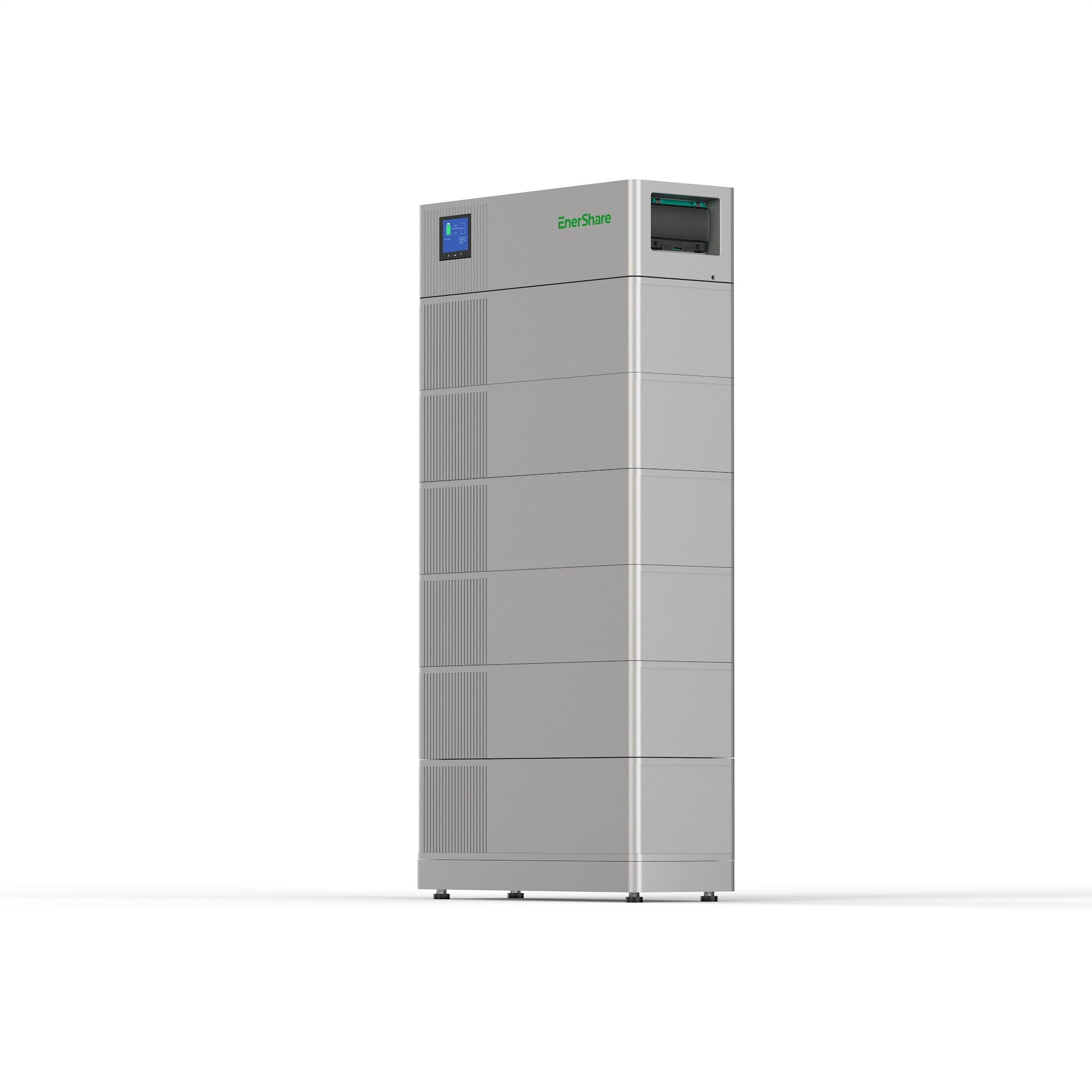

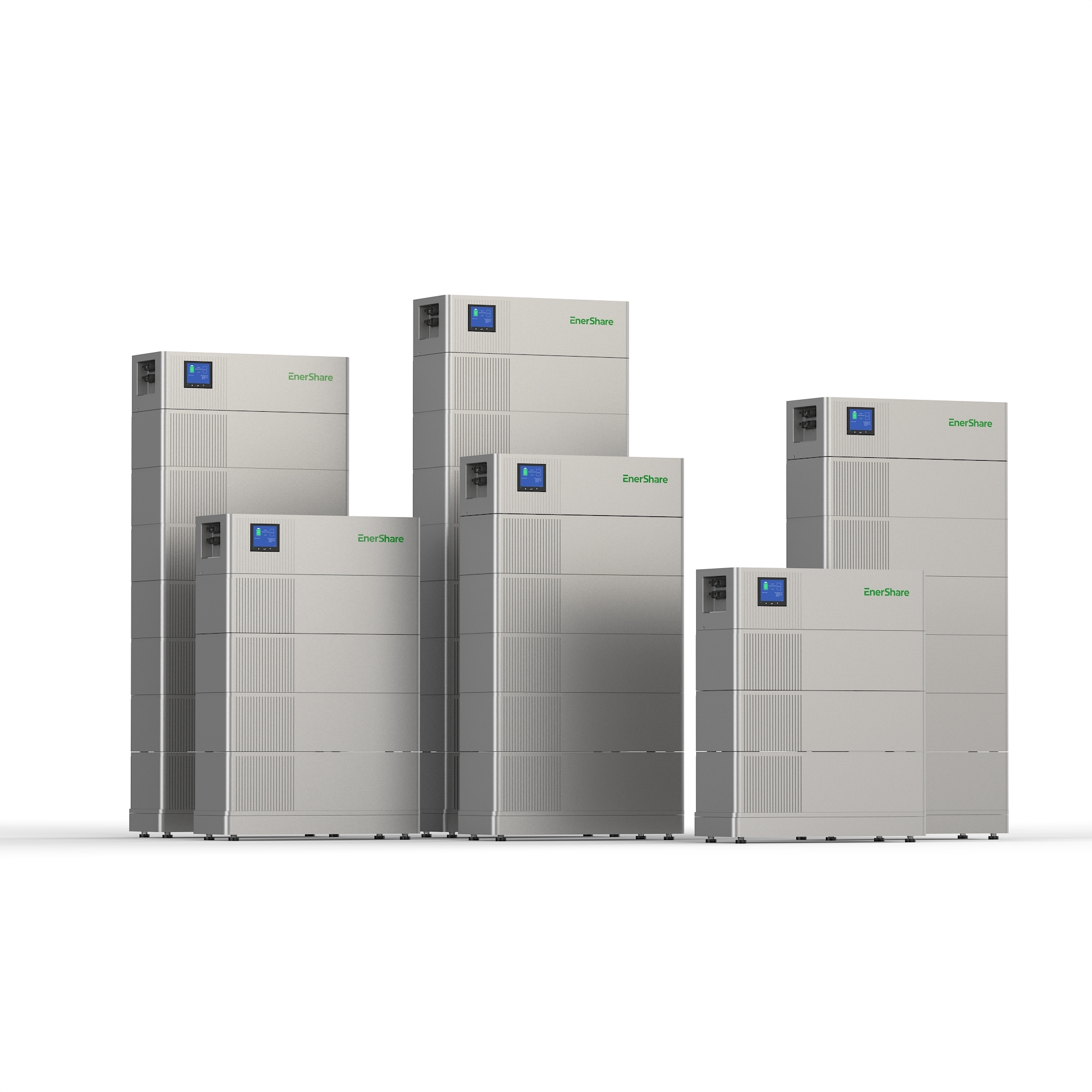

Enershare Power-CORE 1.0 / Enershare Energy-CORE 1.0
Modular stackable battery system architecture made for the way European installers, EPC teams and distributors deliver high-voltage storage projects — predictable on site, repeatable across a portfolio.
Each pack is ≤36.5 kg with invisible handles, so one technician can lift, stack and commission a complete tower without a second pair of hands.

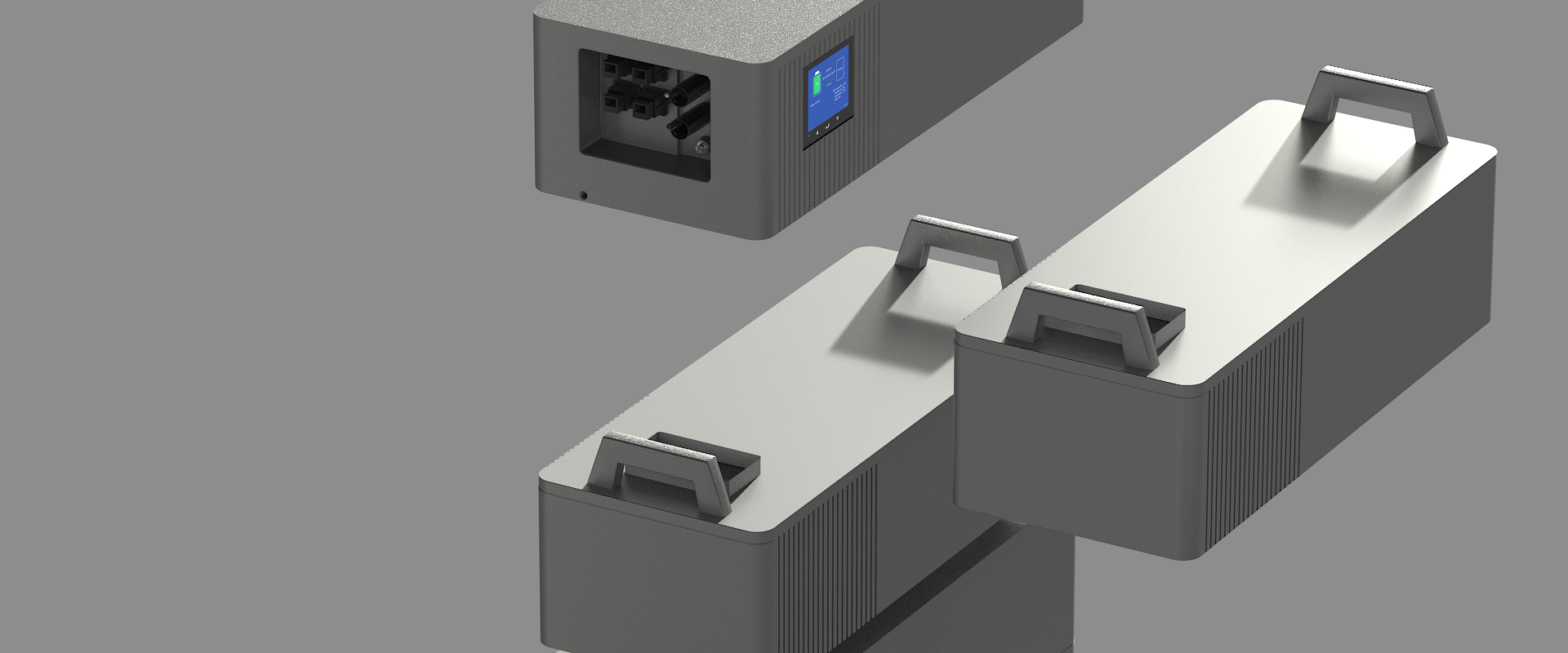

Stackable units connect directly — no additional wires and no additional screws between modules, cutting installation time and removing failure points.

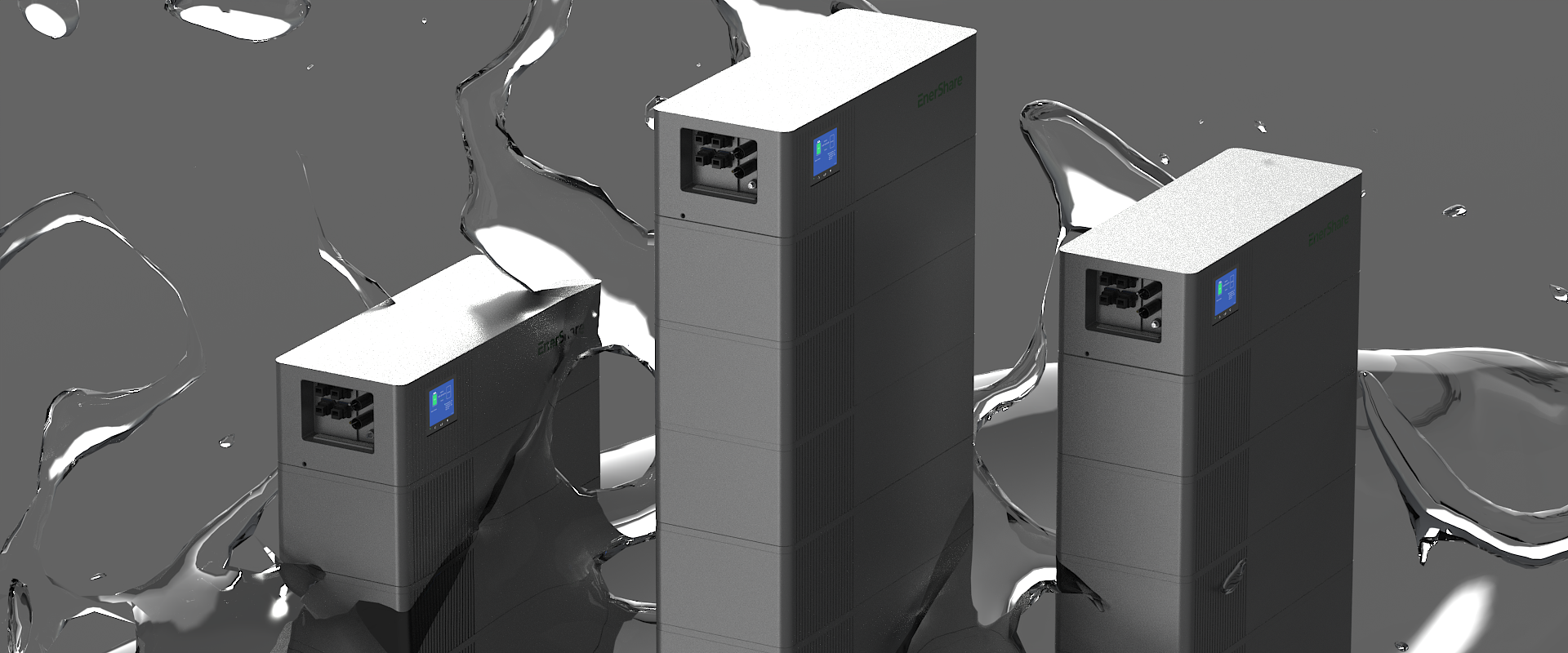

Rated IP65 in an aluminum case, suited to residential utility rooms, basements, garages and sheltered outdoor locations from –10 °C to 55 °C.

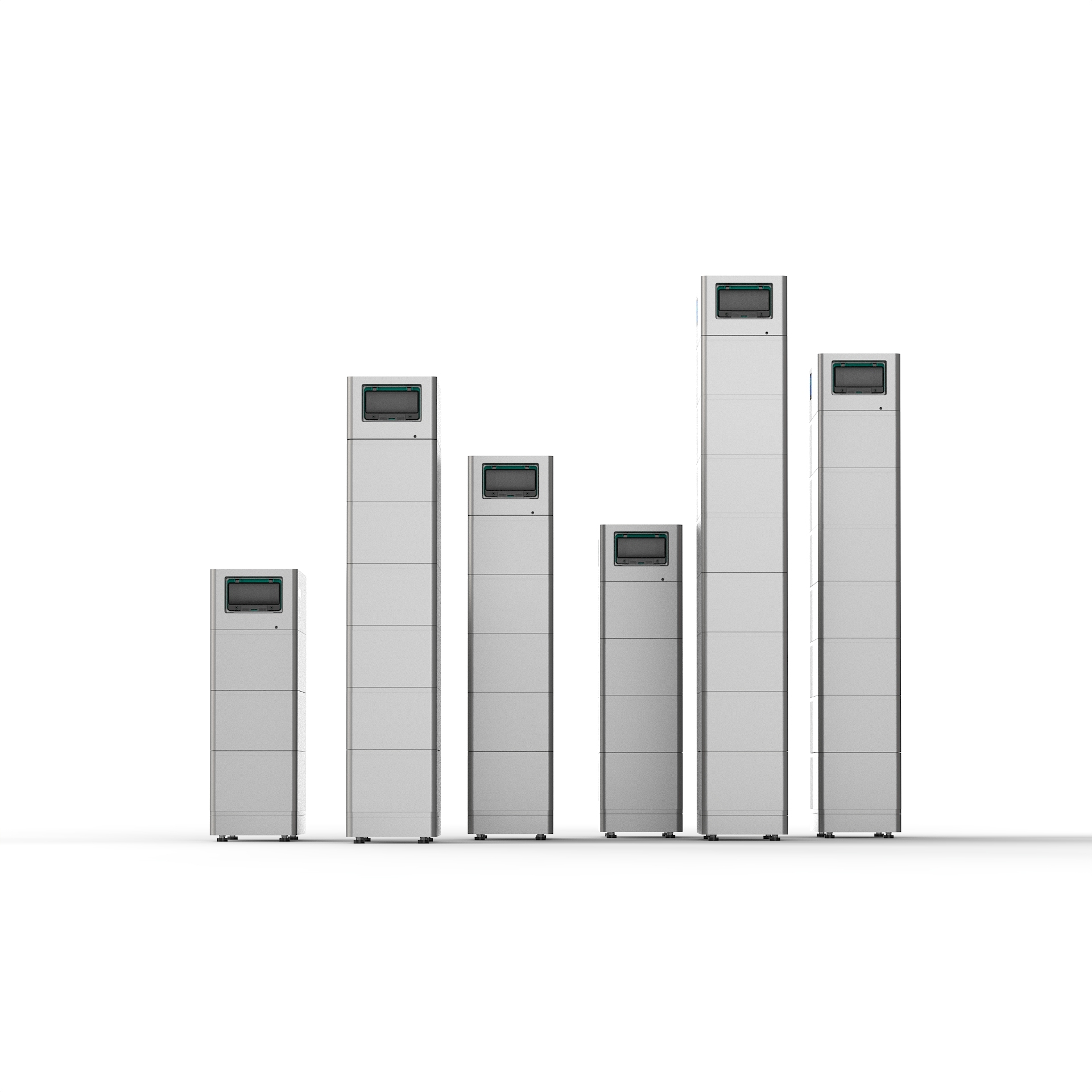

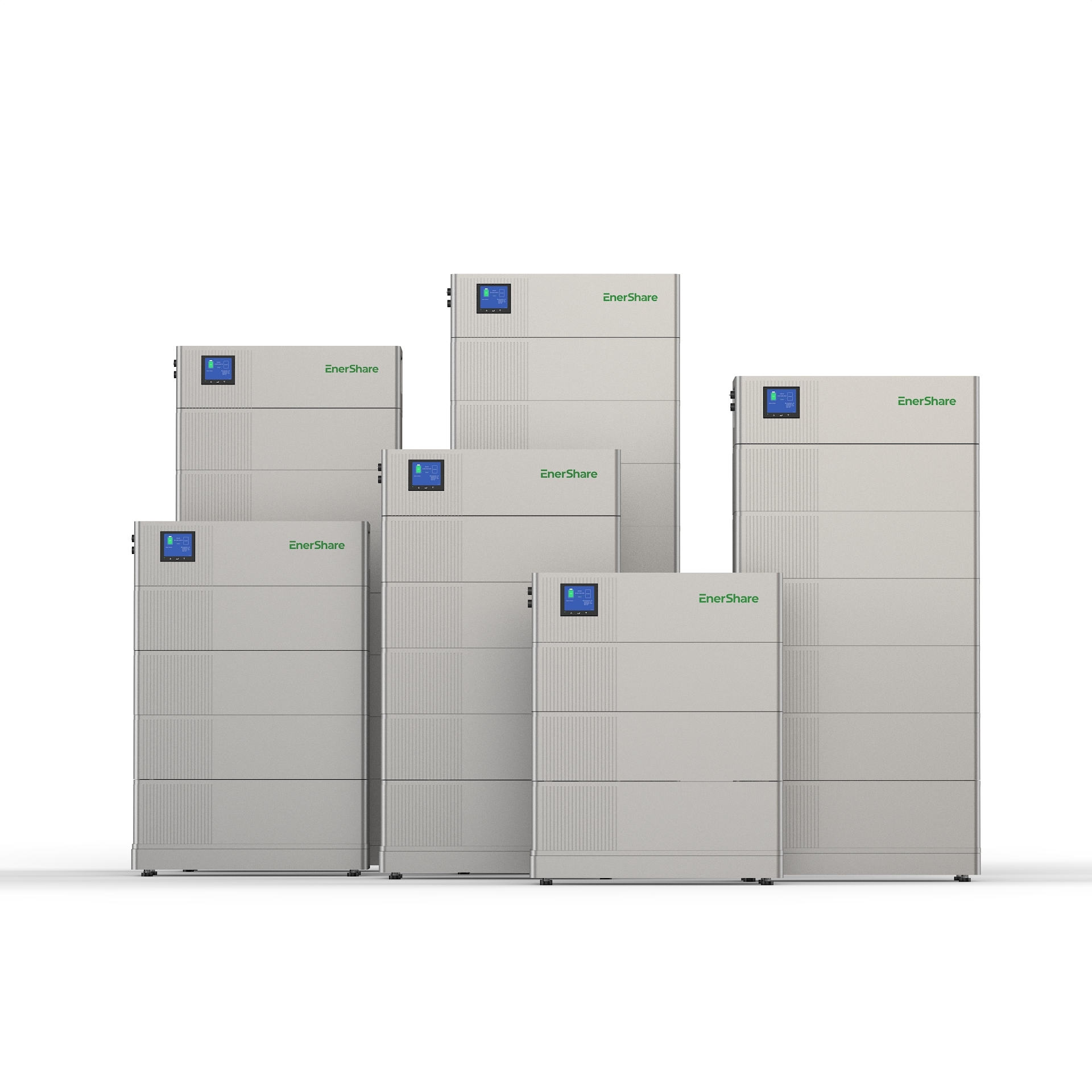

Two product lines share the same stack architecture. Energy-CORE 1.0 covers 9.6–25.6 kWh per tower, Power-CORE 1.0 covers 4.8–12 kWh per tower. All figures are per tower unless stated otherwise.
| Number of Stacks | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|
| Usable Energy | 9.6 kWh | 12.8 kWh | 16 kWh | 19.2 kWh | 22.4 kWh | 25.6 kWh |
| Max Output Current | 30 A | |||||
| Peak Output Current | 50 A (5 s) | |||||
| Nominal Voltage | 192 V | 256 V | 320 V | 384 V | 448 V | 512 V |
| Operating Voltage Range | 162–219 V | 216–292 V | 270–365 V | 324–438 V | 378–511 V | 432–584 V |
| Scalability | Up to 6 towers in parallel (from 9.6 kWh to 153.6 kWh) | |||||
| Dimensions (H×W×D) | 800 mm | 975 mm | 1150 mm | 1325 mm | 1500 mm | 1675 mm |
| Weight | 129.5 kg | 166 kg | 202.5 kg | 239 kg | 275.5 kg | 312 kg |
Tower footprint W 650 × D 260 mm; total height varies with the number of stacked modules.
| Number of Stacks | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Usable Energy | 4.8 kWh | 7.2 kWh | 9.6 kWh | 12 kWh |
| Max Output Current | 25 A | |||
| Peak Output Current | 50 A (5 s) | |||
| Nominal Voltage | 204.8 V | 307.2 V | 409.6 V | 512 V |
| Operating Voltage Range | 172.8–233.6 V | 259.2–350.4 V | 345.6–467.2 V | 432–584 V |
| Scalability | Up to 6 towers (from 5.36 kWh to 80.4 kWh) | |||
| Dimensions (H×W×D) | 625 mm | 800 mm | 975 mm | 1150 mm |
| Weight | 90 kg | 125 kg | 160 kg | 195 kg |
Tower footprint W 650 × D 260 mm; total height varies with the number of stacked modules.
| Battery Type | High-voltage stack lithium-ion modules |
|---|---|
| Operation Temperature | –10 ~ 55 °C |
| Protection Rating | IP65, aluminum case |
| Round-Trip Efficiency | Energy-CORE ≥ 96% · Power-CORE ≥ 95% |
| BMS | Integrated BMS with LCD screen; direct inter-module connection |
| Certification & Compliance | VDE / CE / UKCA / IEC 62619 / CEC / UN38.3 |
| Applications | On-Grid / On-Grid Backup / Off-Grid |
| Warranty | 10 Years |
Designed for efficiency, reliability and safety across solar self-consumption, backup power and small C&I storage.
High-voltage battery packs reduce current loss; Energy-CORE reaches ≥96% round-trip efficiency.
Integrated BMS with LCD monitoring manages voltage, current, temperature and cell balancing.
≤36.5 kg per pack, invisible handles and direct connection — one person completes the stack.
Certified product with European stock behind it and a 10-year warranty for long-term projects.
Pairs with a hybrid inverter to link PV, the grid and household loads — lighting, appliances and EV charging — with 4.8–25.6 kWh per tower and parallel expansion up to 153.6 kWh.
From single-home solar battery storage and backup power through to multi-tower commercial installations.
Self-consumption and backup for European homes and villas running high-voltage hybrid systems.
Small commercial buildings, shops and offices needing daily cycling and peak-shaving capacity.
Modular high-voltage capacity for industrial sites and small C&I energy storage projects.
Backup for critical infrastructure, with on-grid backup and off-grid operating modes.
CE, VDE and IEC 62619 certified, with the compliance documentation and local stock that installers, EPC teams and distributors across Europe expect before they specify a battery.
Up to 6 towers in parallel, with 2–8 stackable modules per tower.
High-voltage architecture reduces current loss across the system.
IP65 aluminum enclosure for residential utility rooms, basements and garages.
Get inverter matching guidance, capacity configuration and project recommendations for your European storage installation.

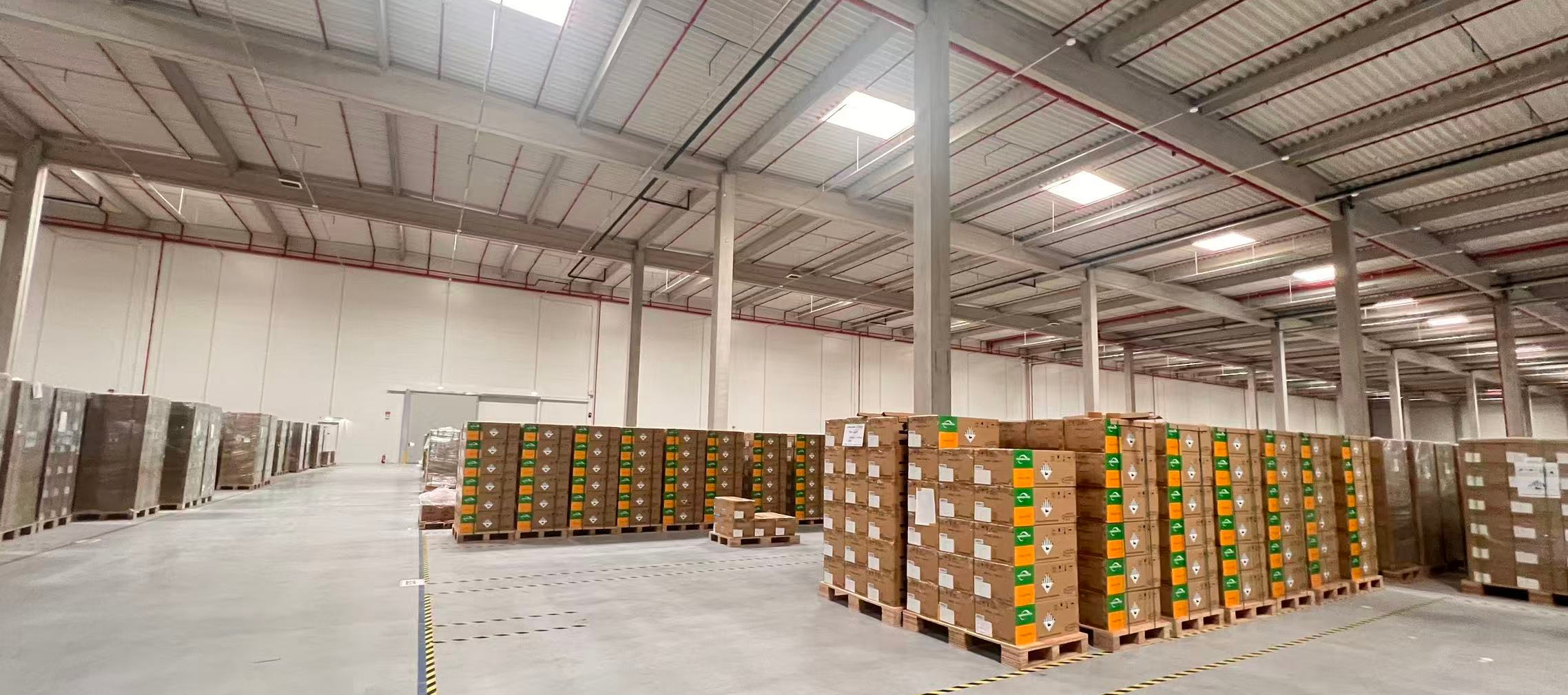

Power-CORE 1.0 / Energy-CORE 1.0 is a European spot product line — units are held in local warehouses, so projects are not waiting on a production run.

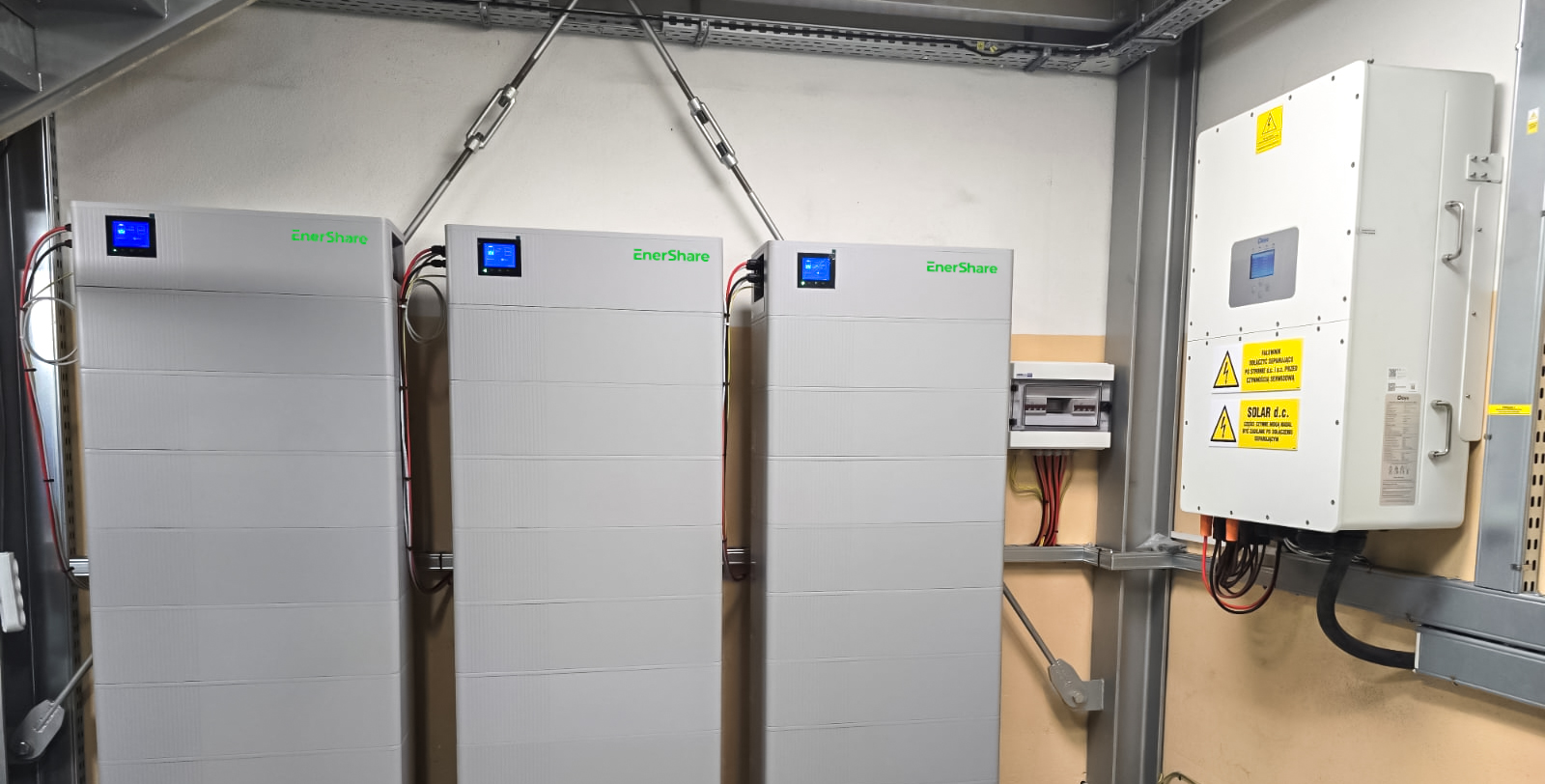

A European commercial installation built from the same modular blocks used in residential projects.
Share your inverter brand, system voltage and required capacity. Our team will confirm compatibility and recommend a suitable battery configuration for your project.
Hybrid inverter matching · voltage & capacity configuration · project-based technical support
Answers for installers, EPC teams and distributors working with Enershare Power-CORE 1.0 / Enershare Energy-CORE 1.0 across Europe.
Tell us your capacity target and inverter brand — we will send a matching configuration and quotation.
model |
Energy-CORE |
|||||
| Number of Stacks | 3 | 4 | 5 | 6 | 7 | 8 |
| Usable Energy | 9.6 kWh | 12.8 kWh | 16 kWh | 19.2 kWh | 22.4 kWh | 25.6 kWh |
| Max Output Current | 30 A | |||||
| Peak Output Current | 50 A (5s) | |||||
| Nominal Voltage | 192 V | 256 V | 320 V | 384 V | 448 V | 512 V |
| Operating Voltage Range | 162~219 V | 216~292 V | 270~365 V | 324~438 V | 378~511 V | 432~584 V |
| Scalability | Up to 6 towers in parallel (From 9,6 kWh to 153,6 kWh) | |||||
| Dimensions (H*W*D) (mm) | 800* 650*260 mm | 975* 650*260 mm | 1150* 650*260 mm | 1325* 650*260 mm | 1500* 650*260 mm | 1675* 650*260 mm |
| Weight | 129.5 kg | 166 kg | 202.5 kg | 239 kg | 275,5 kg | 312 kg |
| Operation Temperature | -10~55 ºC | |||||
| Protection Rating | IP65 | |||||
| Round-trip Efficiency | ≥ 96 % | |||||
| Certification & Compliance | UKCA / IEC62619 / CEC / CE / UN38.3 | |||||
| Applications | ON Grid / ON Grid Backup / OFF Grid | |||||
| Warranty | 10 Years | |||||
model |
Power-CORE |
|||
| Number of Stacks | 2 | 3 | 4 | 5 |
| Usable Energy | 4.8 kWh | 7.2 kWh | 9.6 kWh | 12 kWh |
| Max Output Current | 25 A | |||
| Peak Output Current | 50 A (5s) | |||
| Nominal Voltage | 204.8 V | 307.2 V | 409.6 V | 512 V |
| Operating Voltage Range | 172.8~233.6 V | 259.2~350.4 V | 345.6~467.2 V | 432~584 V |
| Scalability | Up to 6 towers (From 5.36 kWh to 80.4 kWh) | |||
| Dimensions (H*W*D) (mm) | 625* 650* 260mm | 800* 650* 260mm | 975* 650* 260mm | 1150* 650* 260mm |
| Weight | 90 kg | 125 kg | 160 kg | 195 kg |
| Operation Temperature | -10~55 ºC | |||
| Protection Rating | IP65 | |||
| Round-trip Efficiency | ≥ 95 % | |||
| Certification & Compliance | UKCA / IEC62619 / CEC / CE / UN38.3 | |||
| Applications | ON Grid / ON Grid Backup / OFF Grid | |||
| Warranty | 10 Years |
|||
