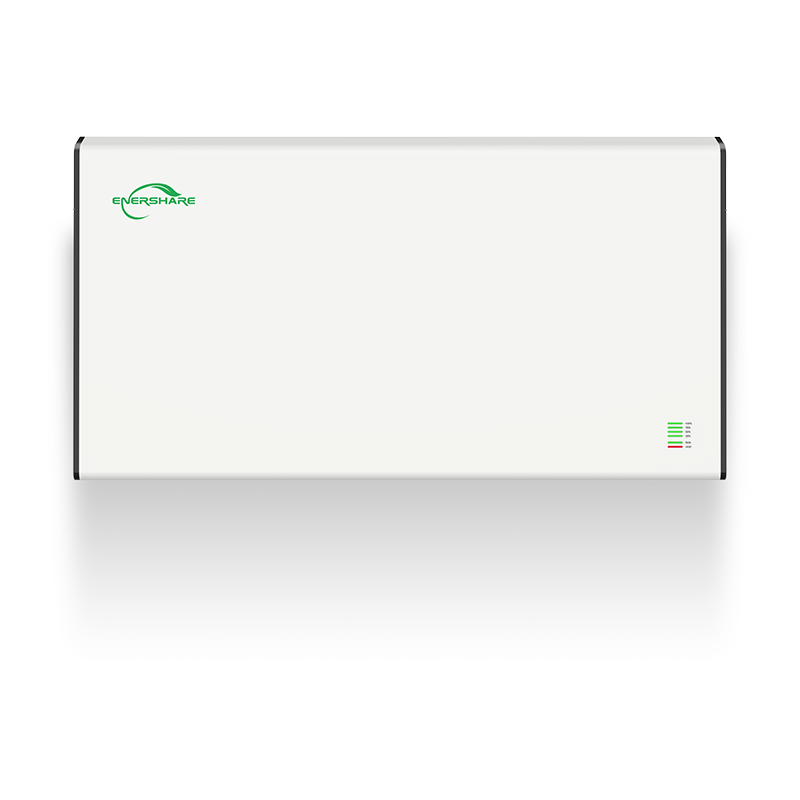

Enershare Power-CORE 1.0 / Enershare Energy-CORE 1.0
Model no |
Blade 7 |
| Battery module Energy | 7.06kWh |
| Useable energy | 6.9kWh |
| Max Output Power | 5kW |
| Peak Output Power | 5.6kW |
| Nominal Voltage | 51.2V |
| Operating Voltage range (Single Phase) | 43.2V-57.6V |
| Dimension (W/D/H) | 1090x580x80mm |
| Weight | 75 Kg |
| Installation | Wall mount |
| Operating Temperature | 10C~+55C |
| Operatign Altitude | 0-3000 m (Derating above 2000 m ) |
| Environment | Indoor |
| Relative Humidity | 5%~95% |
| Cooling | Natural Convection |
| Protection Rating | P20 |
| Noise Emission | db |
| Cycle Life | >6000 (@25C, DoD 90%) |
| Display | SOC Status indicator LED Indicator |
| Cell Technology | BYD Blade Battery (LiFePo4) |
| Scalablity | Max 32 Systems in parallel operation |
| Communication Ports | CAN / RS485 |
| Warranty | 5 Years Standard ( 10 Years Optional) |
